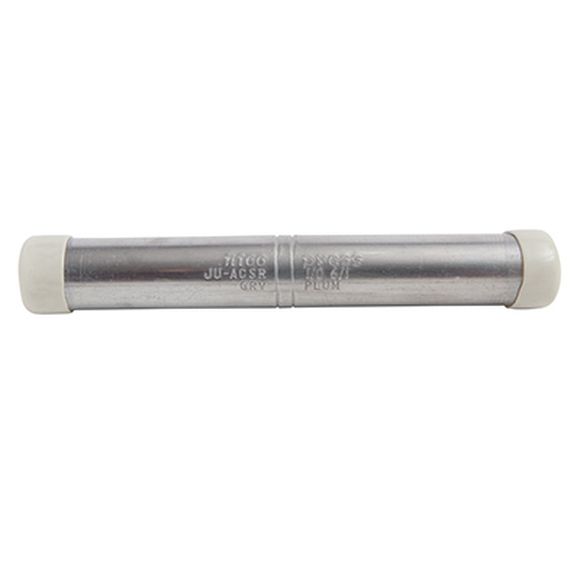

The above image may not be an exact representation of the product.
JU-1/0-ACSR-PLUM Jumper (Loop) Sleeve for ACSR, AAAC, 5005 1/0 AWG
Application: Power Distribution
Product Description
Jumper (Loop) Sleeve for ACSR, AAAC, and 5005 Stranded Conductor - Partial Tension
- Seamless High Conductivity Aluminum Tubing
- Sleeves Develop Class II Partial Tension Requirements in Conformance with EEI-NEMA Standard ANSI C119.4-2011
- Inner Bore Filled with Special Oxide Inhibiting Compound
- Solid Staked Center Barrier
- Capped Ends
- Each sleeve is marked with catalog stock number, conductor size and installation tool groove.
- Product Type : Jumper (Loop) Sleeve
- Product Material : Aluminum
- Wire Type : ACSR, AAAC, 5005
- Wire Size : 1/0 AWG
- Groove : PLUM
- Stranding : 6/1
- ACSR : 1-Jun
- Application : Power Distribution
- Tensile : Partial Tension
- Length : 5 Inch
- Weight : 132 Lbs/1000
- Standard Package : 25
