TM1-pd-300 -
The above image may not be an exact representation of the product.

300 Bench Tool

Application: Power Distribution

Product Description

Manual Bench Tool

Engineered for field conditions, Nicopress tools are manufactured from alloyed forged steel with specially hardened working surfaces. Tools are designed to create maximum metal flow of the splicing sleeve around the wire or conductor. This results in splices that are strong and reliable. Tools have either single or multiple marked pressing grooves matching similar markings found on Nicopress sleeves. 'GO' gauges supplied with each tool assure accurate compression of sleeves.

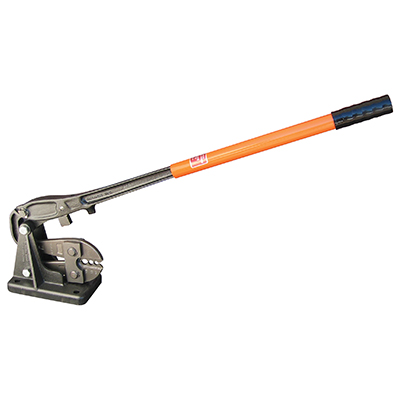

The NICOPRESS Model 300 Bench Mounted Compression Tool is designed to speed up bench type cable assembly work by allowing one-handed operation of bench press. This frees the other hand to position the sleeve and cable. Available in two sizes. Heads for bench tool must be ordered separately.

  • Length 35" (89cm)
  • Weight 19 lbs (8.6kg)
  • Wire Size 1/16" (1.5mm) to 3/8" (10mm)
  • Accommodates Interchangeable Tool HEADS (sold separately)
  • Product Type : Hand Tool
  • Application : Power Distribution
  • For: Power Distribution
