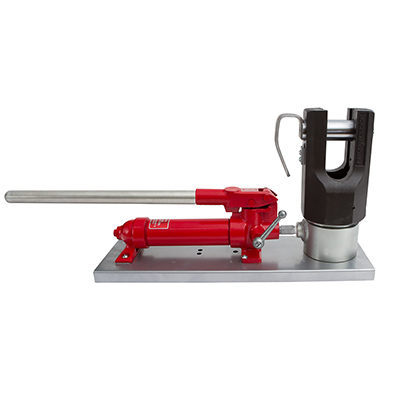

635 Hydraulic 35 Ton Tool
Application: Wire Rope
Product Description
35 ton manual hydraulic compression tool designed for a range of markets. Most versatile swager of its size. Includes manual pump, mounted on a base, packed in carrying case. Compatible with the full range of Nicopress® oval and stop sleeves and will swage sleeves up through 5/8" (16mm). Shop and field applications. Interchangeable tool dies will press copper, aluminum and steel splicing sleeves.
- Dimensions: 33"L x 13"H x 6.5"W (84cm x 16.5cm x 33cm)
- Weight: 73 lbs (33kg)
- Wire Size: 3/64" (1mm) to 5/8" (16mm)
Accessories for 635 hydraulic tool:
- 2498 CABLE CUTTER – Cable Cutter Die for copper and aluminum conductors. 5/8" diameter maximum capacity.
- NEH-1 Hydraulic Pump
- 2685 HOSE 6' – Conversion hose assembly for coupling No. 635 manual hydraulic tool to hydraulic power operation
- 2791 HOSE 12' – Conversion hose assembly for coupling No. 635 manual hydraulic tool to hydraulic power operation
- Product Type : Tool-Hydraulic 35 Ton
- Application : Wire Rope
