635-A Hydraulic 35 Ton Tool
Product Description

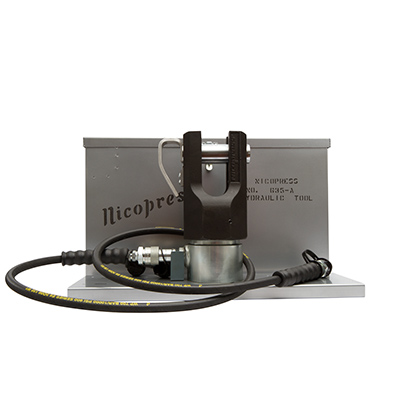

35 ton power hydraulic compression tool designed for a range of markets. Most versatile swager of its size. Includes disconnect coupling, six-foot hydraulic hose (#2696), and ready for hook up to hydraulic power source in steel carrying case. Designed to operate at 10,000 PSI hydraulic pressure. Compatible with the full range of Nicopress® oval and stop sleeves and will swage sleeves up through 5/8" (16mm). Shop and field applications. Interchangeable tool dies will press copper, aluminum and steel splicing sleeves.
- Dimensions: 9"L x 13"H x 6.5"W (33cm x 16.5cm x 23cm)
- Weight: 45 lbs (21kg)
- Wire Size: 3/64" (1mm) to 5/8" (16mm)
Accessories for 635A hydraulic tool:
- 2498 CABLE CUTTER – Cable Cutter Die for copper and aluminum conductors. 5/8" diameter maximum capacity.
- NEH-1 Hydraulic Pump
- 2730 HOSE 6' – Hydraulic extension hose assembly for 635-A tool head
- 2740 HOSE 12' – Hydraulic extension hose assembly for 635-A tool head
- Product Type : Tool-Hydraulic 35 Ton
- Application : Wire Rope
WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
